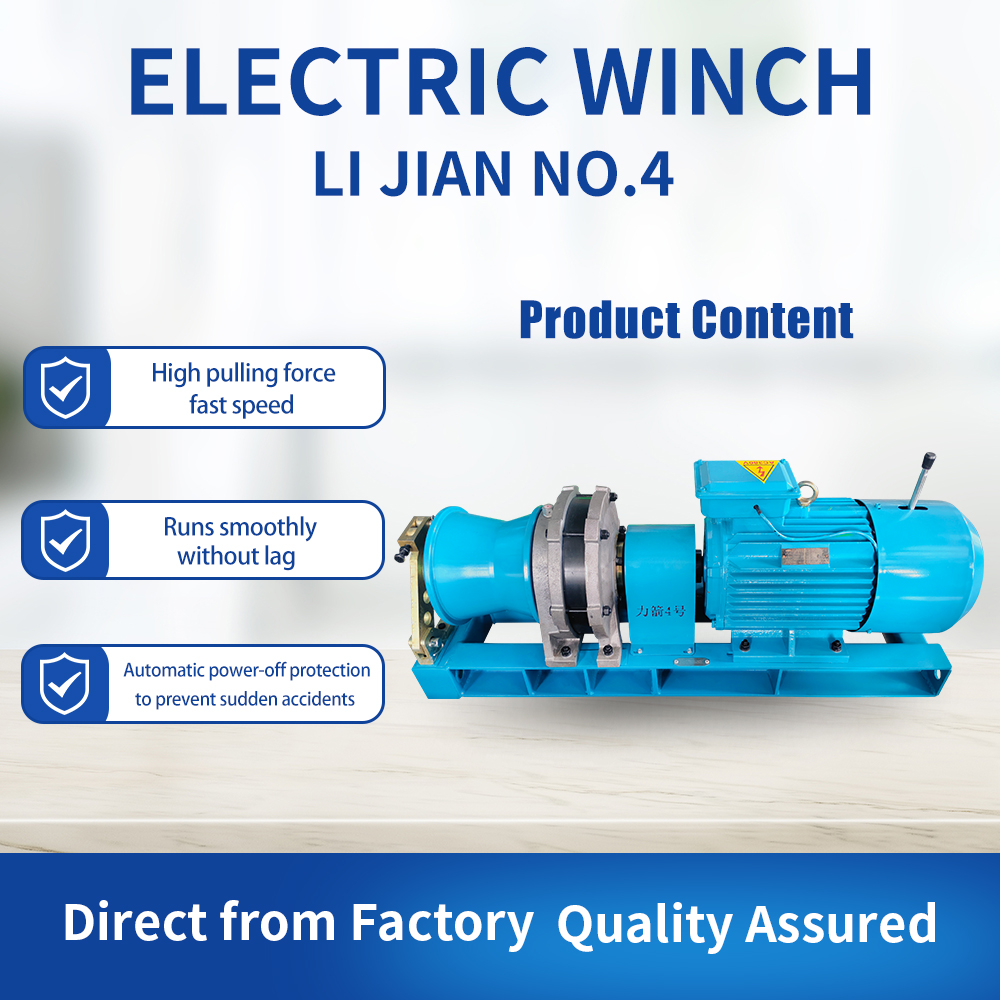

Product Content:

High pulling force, fast speed

Runs smoothly without lag

Automatic power-off protection to prevent sudden accidents

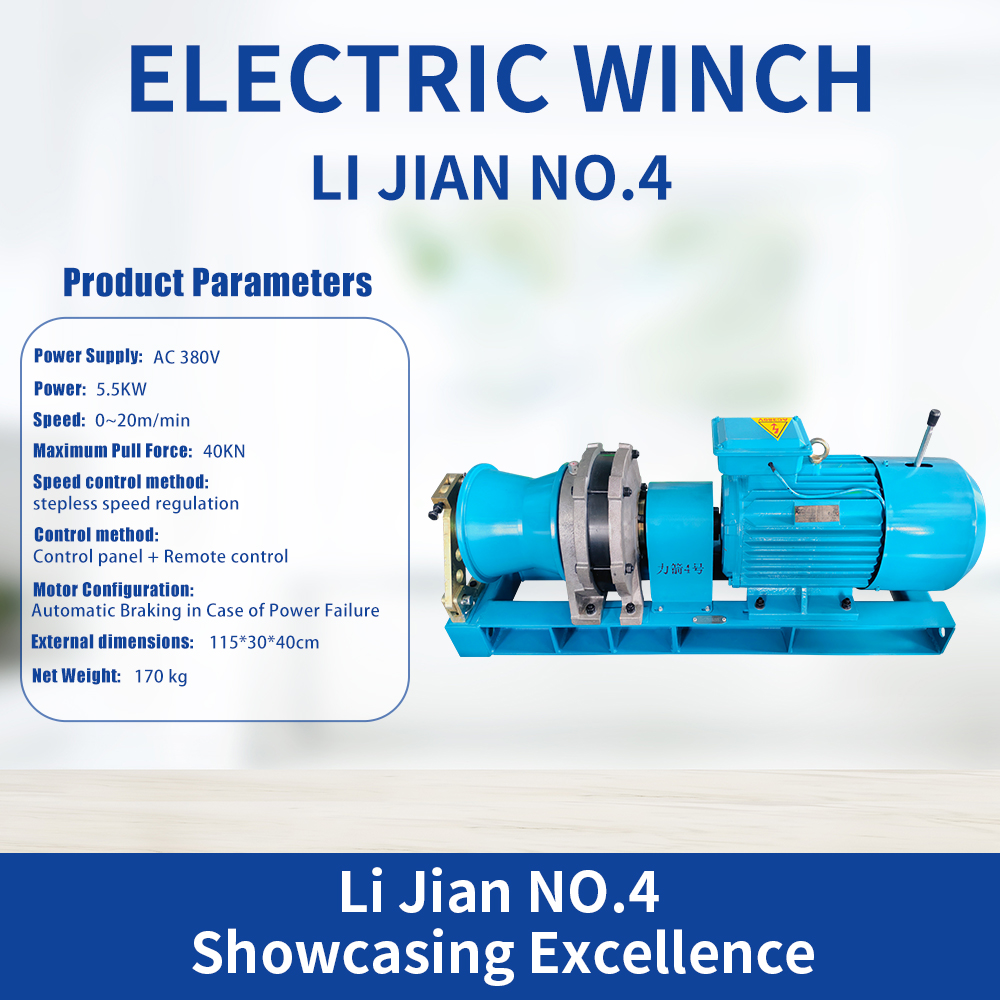

Product Parameters:

Power supply: AC 380V

Power: 5.5KW

Speed: 0~20m/min

Maximum Pull Force: 40KN

Speed control method: stepless speed regulation

Control method: Control panel + Remote control

Motor Configuration: Automatic Braking in Case of Power Failure

External dimensions: 115*30*40cm

Net weight: 170 kg

Product Description:

This machine is an essential equipment for tensioning and erecting overhead cables and underground wiring. It is widely used in the construction of power, telecommunications, and municipal engineering for tensioning, tower assembly, or mobile cable laying operations.

This machine has been proven through on-site operation to have the advantages of reasonable structure, small size, light weight, high power, low noise, flexible operation, and easy handling, and has been highly praised by users.

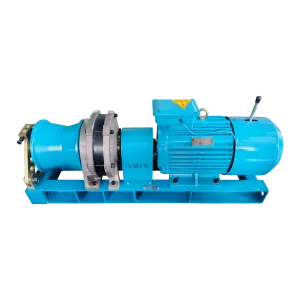

This machine consists of a drum, a reducer, a motor, a portable electric control box, and a base. The motor and the portable electric control box are connected by an aviation plug, which is convenient and safe. It can operate in both "forward" and "reverse" directions and has four main speed gears. It can also use "+" and "-" to achieve infinite speed regulation. The machine and remote control can be used in frequency modulation groups without interfering with each other. And it has multiple joint control functions to achieve remote control.

Product Features:

Small size and light weight

Easy to transport and operate

Strong pulling force and fast speed

Automatic power-off protection

Product Packaging & Shipping

We ensure your machinery arrives in perfect condition, ready for immediate use, through robust packaging and flexible shipping solutions.

1. Packaging Methods:

Standard Export Wooden Cases: Each machine is securely fixed within a custom-built crate, which is specifically designed to prevent damage from moisture, impact, and rough handling during long-distance transportation.

Comprehensive Internal Protection:

Machines are first wrapped in heavy-duty plastic film for moisture and dust protection.

They are then secured inside the cases using high-strength straps and foam padding to eliminate any movement.

All accessories, remote controls, and documentation are individually packaged and sealed within the main wooden case.

Clear External Marking: Cases are clearly labeled with:

Product Name & Model

Gross/Net Weight

Package Dimensions (L x W x H)

Handling Instructions (e.g., "Fragile," "This Side Up," "Keep Dry")

Your unique order number for easy identification.

2. Shipping Methods: (e.g., Deppon Logistics)
We offer various shipping options to best suit your timeline and budget:

Rail Transport: Railway transportation offers stable transit times and is unaffected by weather, providing reliable logistics support for your foreign trade orders.

Sea Freight (FCL/LCL): We tailor the most economical solutions for each buyer order.

Air Freight: To expedite urgent or small-volume orders, we coordinate with air carriers to ensure timely delivery.

After-Sales Service & Support

1. Warranty Policy

We provide a standard warranty period of 12 months commencing from the date of delivery.
The warranty covers all manufacturing defects and malfunctions under normal operating conditions.
During the warranty period, any product-related issues will be evaluated on a case-by-case basis, and necessary support and services will be provided.

2. Global Technical Support

Lifetime Free Consultation: We offer free, lifelong technical consultation via email, WhatsApp, and WeChat. Our engineers are readily available to answer any operational or technical inquiries you may have.

Remote Diagnostics: For specific issues, our technical team can provide remote guidance and troubleshooting through online video calls.

3. On-Site Service
For complex issues that cannot be resolved remotely, we can arrange for certified engineers to provide on-site service. This service includes:

Equipment installation, commissioning, and calibration.

On-site operation and maintenance training for your personnel.

Thorough inspection and repair.

Delivery Details：

Method: By sea or air freight.
Delivery: Within 3 days of payment receipt.
Packaging: Standard export wooden crates with waterproof lining and foam padding for fixation.
Tracking: Shipping documents & tracking number provided via email.

Company Information：

Zhengzhou Zhi Shi Changyun Technology Co., Ltd., established on June 30, 2014, is a comprehensive enterprise integrating R&D, manufacturing, and sales. Its business spans machinery manufacturing, communication equipment, and engineering machinery, with main products including cable conveying machines, Optical Cable Pulling Machines, and winch grinders, among other professional equipment. The company operates a modern production facility covering 6,000 square meters and employs over 150 technical professionals. It has obtained ISO9001 quality management system certification and nearly 100 patent grants. Its products are widely used in power engineering, communication networks, transportation infrastructure, and other fields, with a nationwide sales and service network. The company provides a year-round 24/7 telephone consultation service, and its technical team can respond to on-site issues within 48 hours. In 2023, it was recognized as a High-Tech Enterprise in Zhengzhou and has maintained the title of "Contract-abiding and Credit-worthy Enterprise" for five consecutive years (2020-2025).

Product Case:

Construction case of Lijian No. 4 electric grinder

In a recent power line installation project in a mountainous area, the project team used the "Lijian No. 4" electric grinder for wire laying. Faced with steep terrain and long-distance traction challenges, the equipment demonstrates strong power and excellent stability, continuously providing 3 tons of smooth traction force and efficiently completing the task of erecting multiple heavy wires. Its convenient operation and flexible mobility significantly improve construction efficiency, ensure timely completion of the project, and win unanimous praise from construction personnel. It is a reliable power guarantee for complex terrain construction.

Frequently Asked Questions:

Q: Why do I sometimes feel bored or even suddenly shut down when using a generator for power supply in the wild?

A: This is usually caused by insufficient power supply voltage. The voltage drop of small generators or excessively long cables in the wild is high, which cannot meet the peak power requirements during equipment start-up and overload. It is recommended to check whether the generator output is stable above 380V and ensure that the cable diameter is thick enough. If necessary, replace the power generation equipment with a higher power.
