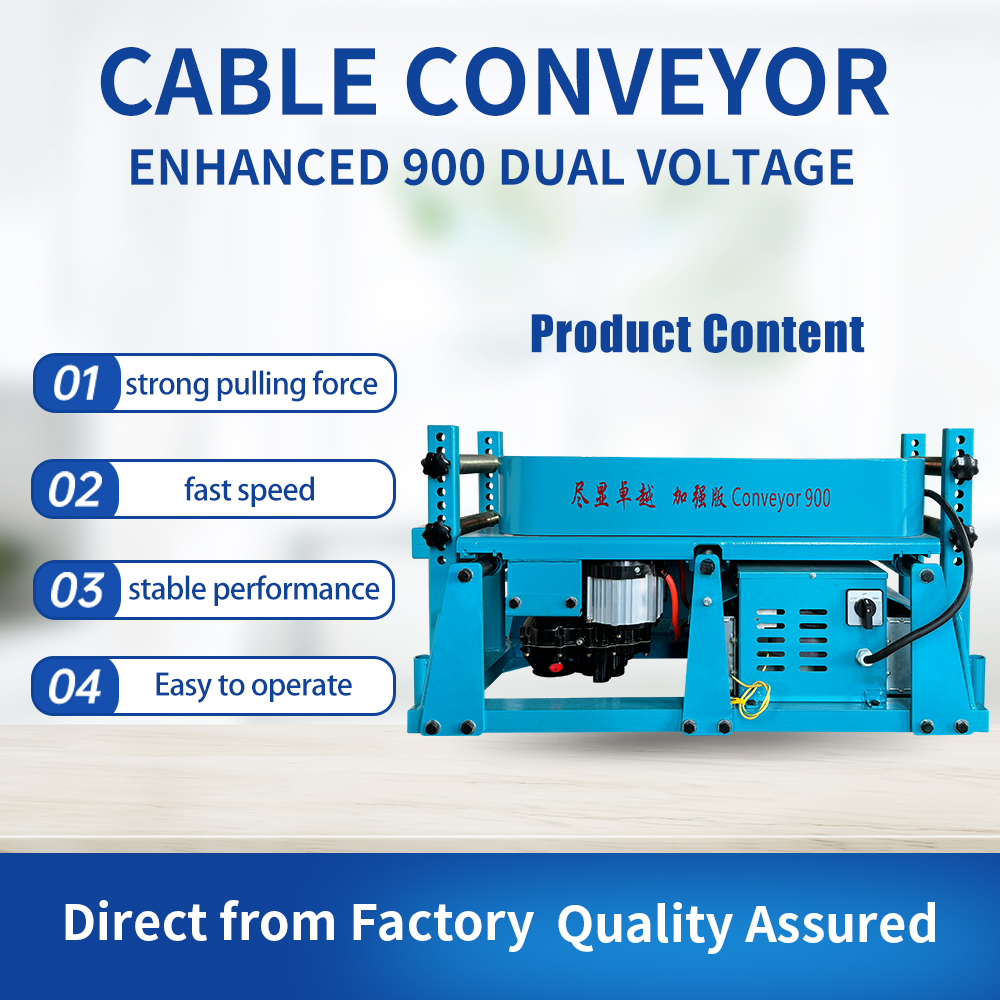

Product Content:

strong pulling force

fast speed

stable performance

Easy to operate

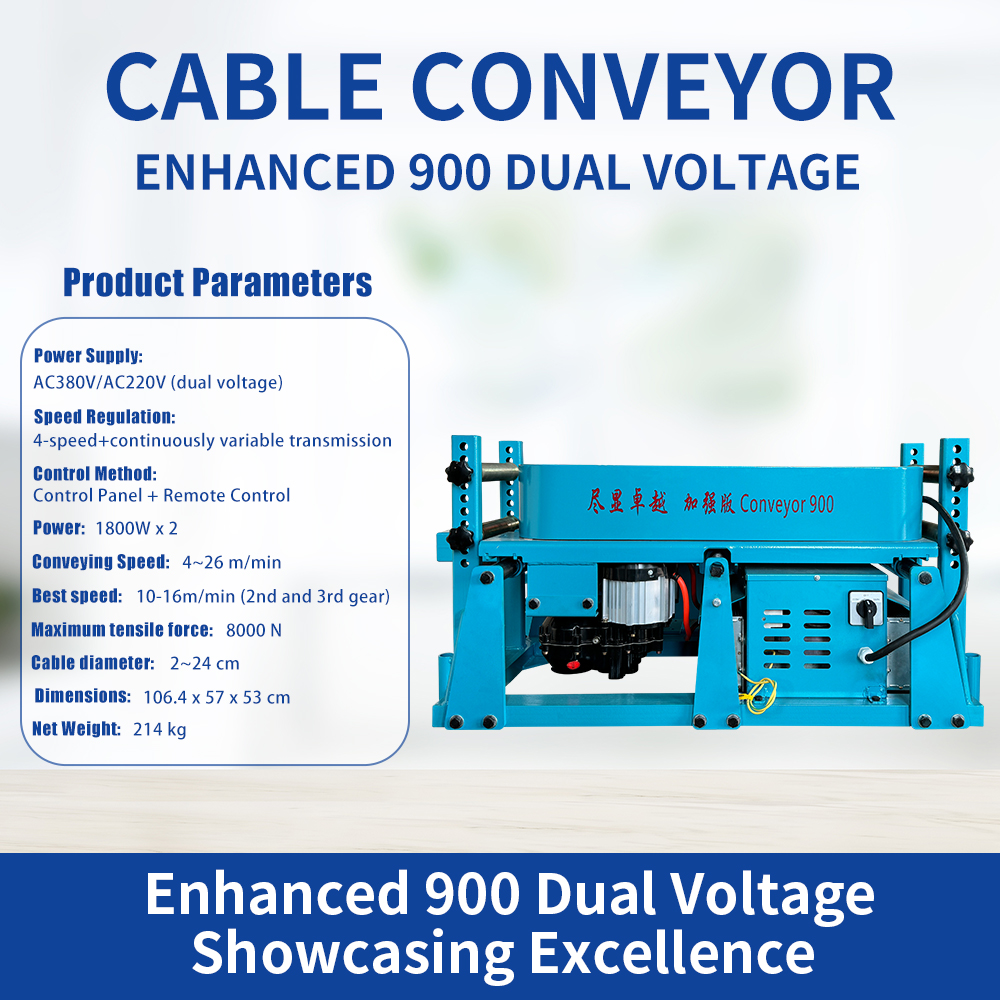

Product Parameters:

Power supply: AC380V/AC220V (dual voltage)

Speed regulation: 4-speed+continuously variable transmission

Control mode: Control panel+remote control

Power: 1800WX2

Conveying speed: 4~26m/min

Best speed: 10-16m/min (2nd and 3rd gear)

Maximum tensile force: 8000N

Cable diameter: 2-24cm

Dimensions: 106.4X57X53cm

Net weight: 214kg

Product Description:

This machine features a compact and rational structure, excellent performance, smooth operation, low noise, high conveying speed, and easy maintenance. It is suitable for long-distance cable installation, such as cable tray cables, cables in subway tunnels, instrumentation cables, and electrical control line installation.

This machine can operate in both "forward" and "reverse" directions, with four main speed gears. Additionally, stepless speed regulation can be achieved using the "+" and "-" controls. The machine and remote control can be grouped by frequency matching, allowing them to operate independently without mutual interference. It also supports multi-unit synchronized control for operation from distant locations.

Product Features:

l Compact Structure, Rational Design

l Stable Operation, Excellent Performance

l Dual Pure Copper Core, Durable and Reliable

l Bidirectional Operation, Four Adjustable Gears

l Multi-unit Synchronized Control, Remote Command

Product Packaging & Shipping

We ensure your machinery arrives in perfect condition, ready for immediate use, through robust packaging and flexible shipping solutions.

1. Packaging Methods:

Standard Export Wooden Cases: Each machine is securely fixed within a custom-built crate, which is specifically designed to prevent damage from moisture, impact, and rough handling during long-distance transportation.

Comprehensive Internal Protection:

Machines are first wrapped in heavy-duty plastic film for moisture and dust protection.

They are then secured inside the cases using high-strength straps and foam padding to eliminate any movement.

All accessories, remote controls, and documentation are individually packaged and sealed within the main wooden case.

Clear External Marking: Cases are clearly labeled with:

Product Name & Model

Gross/Net Weight

Package Dimensions (L x W x H)

Handling Instructions (e.g., "Fragile," "This Side Up," "Keep Dry")

Your unique order number for easy identification.

2. Shipping Methods: (e.g., Deppon Logistics)
We offer various shipping options to best suit your timeline and budget:

Rail Transport: Railway transportation offers stable transit times and is unaffected by weather, providing reliable logistics support for your foreign trade orders.

Sea Freight (FCL/LCL): We tailor the most economical solutions for each buyer order.

Air Freight: To expedite urgent or small-volume orders, we coordinate with air carriers to ensure timely delivery.

After-Sales Service & Support

1. Warranty Policy

We provide a standard warranty period of 12 months commencing from the date of delivery.
The warranty covers all manufacturing defects and malfunctions under normal operating conditions.
During the warranty period, any product-related issues will be evaluated on a case-by-case basis, and necessary support and services will be provided.

2. Global Technical Support

Lifetime Free Consultation: We offer free, lifelong technical consultation via email, WhatsApp, and WeChat. Our engineers are readily available to answer any operational or technical inquiries you may have.

Remote Diagnostics: For specific issues, our technical team can provide remote guidance and troubleshooting through online video calls.

3. On-Site Service
For complex issues that cannot be resolved remotely, we can arrange for certified engineers to provide on-site service. This service includes:

Equipment installation, commissioning, and calibration.

On-site operation and maintenance training for your personnel.

Thorough inspection and repair.

Delivery Details：

Method: By sea or air freight.
Delivery: Within 3 days of payment receipt.
Packaging: Standard export wooden crates with waterproof lining and foam padding for fixation.
Tracking: Shipping documents & tracking number provided via email.

Company Information：

Zhengzhou Zhi Shi Changyun Technology Co., Ltd., established on June 30, 2014, is a comprehensive enterprise integrating R&D, manufacturing, and sales. Its business spans machinery manufacturing, communication equipment, and engineering machinery, with main products including cable conveying machines, Optical Cable Pulling Machines, and winch grinders, among other professional equipment. The company operates a modern production facility covering 6,000 square meters and employs over 150 technical professionals. It has obtained ISO9001 quality management system certification and nearly 100 patent grants. Its products are widely used in power engineering, communication networks, transportation infrastructure, and other fields, with a nationwide sales and service network. The company provides a year-round 24/7 telephone consultation service, and its technical team can respond to on-site issues within 48 hours. In 2023, it was recognized as a High-Tech Enterprise in Zhengzhou and has maintained the title of "Contract-abiding and Credit-worthy Enterprise" for five consecutive years (2020-2025).

Product Cases：

Application of Changyun Technology 900 Enhanced Edition in Cable Laying on Urban Trunk Roads

In a certain city's power grid renovation project, it is necessary to cross a busy main road and lay large section high-voltage cables. The construction party selected Changyun Technology 900 enhanced version dual voltage Cable conveyor. This device, with its strong thrust and dual voltage adaptability, easily meets the challenges of laying in long-distance and complex pipe corridors. Multiple devices worked together to ensure smooth and efficient cable transportation, effectively protecting the external insulation of the cables. The construction efficiency was improved by about 30%, and the task was successfully completed three days ahead of schedule, demonstrating its excellent engineering applicability and reliability.

Frequently Asked Questions：

Q: What is the biggest advantage of Changyun Technology 900 enhanced version dual voltage cable conveyor?

A: Its core advantages lie in excellent environmental adaptability and construction convenience. It has a dual voltage (220V/380V) power supply mode, which can flexibly adapt to the complex power supply conditions on construction sites, and seamlessly integrate with both municipal power grids and industrial electricity. Combined with its strong conveying thrust, it ensures high efficiency and stability in long-distance and large section cable laying, greatly improving construction efficiency.
